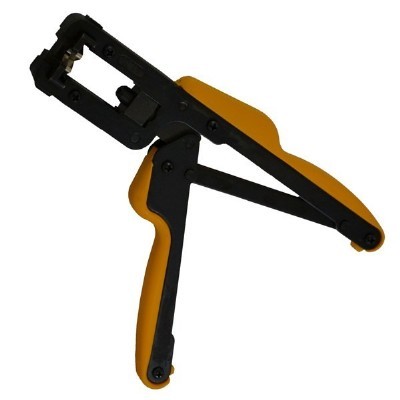

8820US - Uni-Seal Drop Tool - PPC/EX & PCT/TRS

Features:

This universal drop tool is designed for use with PPC/EX and PCT/TRS Series environmentally sealed RG6 and RG59 male F compression connectors.

  • A toggle action to assure complete connector sealing, thus eliminating the need for a complicated ratchet mechanism
  • The tool incorporates high mechanical advantage to reduce compression force during connector installation
  • Ergonomic design minimizes user fatigue and promotes high levels of productivity
  • Cable positioners provide 360-degree connector support during compressions such as tight nuts, bent connectors or popped O-rings
  • Handle activation allows easy access when terminating in M.D.U. enclosure or dealing with a short stub-in
  • The natural grasp of the tool allows the handle to open the actuation chamber for easy connector insertion
  • All metal parts are high carbon steel heat treated for longevity of operation
  • No exposed retaining rings to catch on objects causing the tool to dis-assemble
  • Handle grips are molded from Hytrel making the tool durable and highly visible
  • Tools conservatively rated for 25,000 cycles on high load connectors and easily field re-furbished

Instructions:

8800 US
Item #
8820US
Item Application
Belden PPC/EX & PCT/TRS Series Compression connectors
Connector/Terminal Type
EX59 AND EX6 , TRS 6
Cable/Crimp Type
Coax CATV / Compression
Crimp/HEX/Wire Sizes
RG6 & RG59
Product Length
8.5 inches
Product Weight
15 ounces
