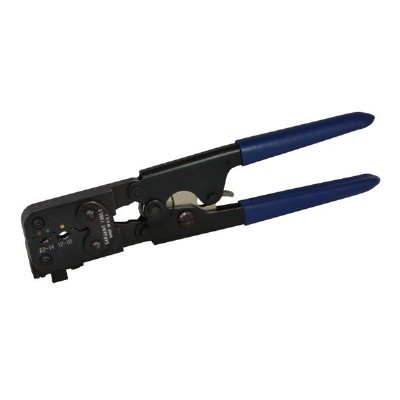

3140CT - Insulated Terminal Crimp Tool

Features:

The 3100 Series, the standard of the industry, the product by which all other crimp tools are judged is available for most connector applications. This tool has been the choice of professionals for over three decades. Longevity of operation coupled with fully machined crimp cavities, provide the level of performance required for the most stringent commercial applications. The years of association with the major connector manufacturers is apparent by the exacting crimps produced by these tools.

  • Crimps conductor and strain relief portion of insulated terminals and splices in one tool closure
  • Crimps are produced in two cavities: RED 22-16 AWG/BLUE 16-14 AWG and YELLOW 12-10 AWG
  • Includes locator and wire stop to orient contacts

WARNING:  This product can expose you to chemicals including vinyl chloride which is known to the State of California to cause cancer. For more information go to https://www.P65Warnings.ca.gov.

3140 CT
Item #
3140CT
Item Application
Insulated terminal & splices, color coded RED, BLUE, & YELLOW
Connector/Terminal Type
Insulated
Cable/Crimp Type
Conductor and strain relief, 2 cavities
Crimp/HEX/Wire Sizes
22-10 AWG
Product Length
9 inches / 22.86 cm
Product Weight
15 ounces / .42 kgs
