SAR-200CS - Drop Tool
Features:
- Rotatable Head quickly and easily alternates between RG6/59 and RG11/7 applications with a quick simple twist.
- Hardened steel construction.
- Comfortable grips with patented handle design.
- Black oxide finish.
- Designed for PPC AquaTight fittings (EXXL Series) and many other popular compression connectors.
- Applications include PPC (EXXL version*)(CMP). Thomas & Betts (SNS), Gilbert (UltraEase, UltraRange, UltraSeal), Digicon (DS), and more! For a complete list click on the Description tab
- Note: For PPC "EX Series" RG6/59 Connectors use Sargent Part # SAR-300US or SAR-300CS

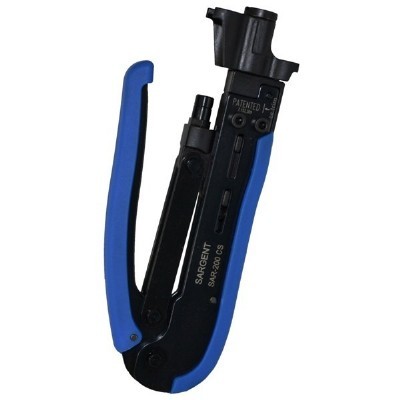

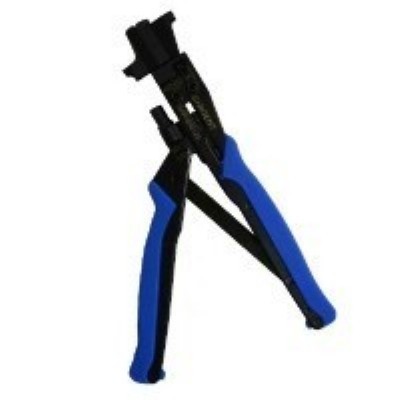

The SAR-200 CS COMPRESSION TOOL is designed for use with RG6/59 & RG11/7 environmentally sealed F connectors by PPC, Belden, Corning Gilbert, Digicon, and more.
The SAR-200 CS is effective with these connectors:
| BELDEN | PPC | ||
| SNAP-N-SEAL | EXXL Series | Aquatight | CMP |
| FSNS6U | EX6XL | EX6XLWS | CMP6 |
| FSNS59U | EX59XL | EX59XLWS | CMP6Q |
| 716SNS1P11H | EX59XLHE | EXN716WS | CMP59 |
| 716SNS1P11HPLA | EX7 | EX11N716WS | CMP59Q |
| 716SNS1P11HQ | EX7N716 | EX320QRWS | CMPF-MINI |
| SNS1P11H | EX11 | CMPT-MINI-HE | |
| 90SNS1P11H | EX11N716 | ||
| EX320QR | |||
| CORNING GILBERT | |||
| UltraShield | UltraRange | UltraEase Pin Type “F” Compression | |
| GF-URS-59 | GF-UR-59 | GAF-UE-M | |
| CG-URS-6 | GF-UR-6 | GAF-UE-MQ | |
| GF-URS-59-K | GF-UR-59-HEC | ||
| GF-URS-6-K | GF-UR-59-K | ||
| GAF-URS-11-MH | GF-UR-6-K | ||
| GF-UR-6-PL | |||
| UltraEase | GF-UR-59-SR | ||
| GF-UE-59 | GF-UR-6-SR | ||
| GF-UE-59Q | GAF-UR-11 | ||
| GF-UE-6 | GAF-UST-11 | ||
| GF-UE-6Q | GAF-UR-11-MH | ||
| GF-UE-59ID | GAF-UST-11Q | ||
| GF-UE-59QID | GAF-UST-7 | ||
| GF-UE-6ID | GAF-UST-7Q | ||
| GF-UE-6QID | |||
| ARRIS-DIGICON | |||
| DS6 | |||
| DS59 | |||
| DS6Q | |||
| DS59Q | |||
| DS11 | |||
| DS7 | |||
Instructions:
- Item #
- SAR-200CS
- Item Application
- CATV / Satellite Coax Compression Connectors ("XL" Size RG6/59)
- Connector/Terminal Type
- Compression F Connectors click on Description tab (above) for a complete list
- Cable/Crimp Type
- Compression
- Crimp/HEX/Wire Sizes
- RG6/59 & RG11/7
- Product Length
- 6.875"
- Product Weight
- 14.0 oz.
- Comcast CIFA #
- 24538
