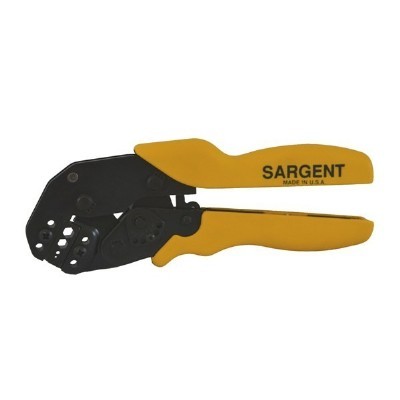

2154CT - Plenum Coax Crimp Tool
Features:
This compact design provides a new level of efficiency and convenience when terminating small to medium size wire or cable. The same level of quality and performance built into the 4100 Series, is also provided in the 2100 Series. The US manufactured, fine blank high carbon steel construction, provides the accuracy and longevity expected from a durable commercial grade crimping tool.
- Crimps the center pin to a .042 or .068 hex, RG58 ferrule to a . 190 hex and the RG59 ferrule to a .213 hex on plenum coaxial cable
- Molded grips and an easy reach frame minimize user fatigue
- Compact lightweight design
- Cyclic life conservatively rated for 50,000 cycles
- Interlocking die sets are easily interchanged with mounting screws on most applications
- Fine blanked high carbon steel construction provides for longevity and maintained accuracy

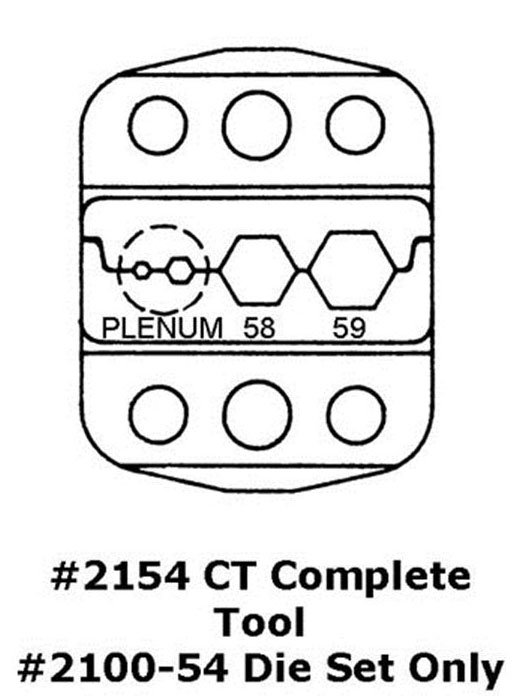

Jaws Configuration

- Item #
- 2154CT
- Die Only
- 2100-54
- Item Application
- BNC, TNC 3 piece Plenum coaxial cable
- Connector/Terminal Type
- BNC, TNC +
- Cable/Crimp Type
- RG58, RG59 Plenum
- Crimp/HEX/Wire Sizes
- .042hex / .068 / .190 / .213
- Product Length
- 7.5 inches / 19.05 cm
- Product Weight
- 15 oz. / .42 kgs
