2165CT - Coax Crimp Tool RG174 & Fiber Optic


This compact design provides a new level of efficiency and convenience when terminating small to medium size wire or cable. The same level of quality and performance built into the 4100 Series, is also provided in the 2100 Series. The US manufactured, fine blank high carbon steel construction, provides the accuracy and longevity expected from a durable commercial grade crimping tool.

  • Crimps the center pin to a .042 square or.068 hex. The ferrule on a small coaxial cable to a .100 and .128 hex and the RG174 ferrule to a .178 hex
  • Molded grips and an easy reach frame minimize user fatigue
  • Compact lightweight design
  • Cyclic life conservatively rated for 50,000 cycles
  • Interlocking die sets are easily interchanged with mounting screws on most applications
  • Fine blanked high carbon steel construction provides for longevity and maintained accuracy

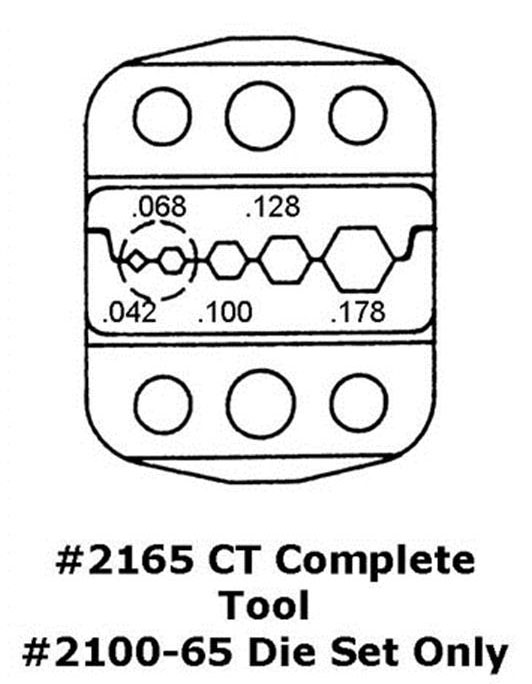

Jaws Configuration

2165 CT
Item #
Die Only
Item Application
BNC, TNC, Fiber optic
Cable/Crimp Type
Mini coax, RG174
Crimp/HEX/Wire Sizes
.042sq / .068 / .100 / .128 / .178
Product Length
7.5 inches / 19.05 cm
Product Weight
15 oz. / .42 kgs
