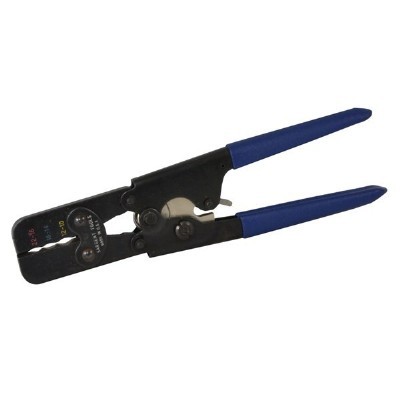

3120CT - Ratchet Conductor Crimp Tool, 3 Cavities: Red (22-16 AWG), Blue (16-14 AWG) and Yellow (12-10 AWG)


The 3100 Series, the standard of the industry, the product by which all other crimp tools are judged is available for most connector applications. This tool has been the choice of professionals for over three decades. Longevity of operation coupled with fully machined crimp cavities, provide the level of performance required for the most stringent commercial applications. The years of association with the major connector manufacturers is apparent by the exacting crimps produced by these tools.

  • Crimps conductor portion of nylon and vinyl insulated terminals
  • Not for use with heat shrink terminals
  • Ratcheted for positive performance
    • Red 22-16 AWG
    • Blue 16-14 AWG

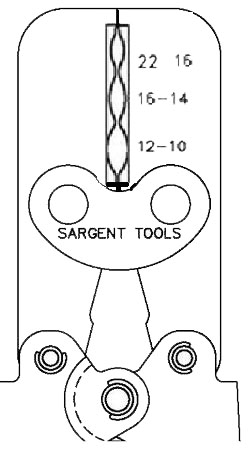

    • Yellow 12-10 AWGCrimps are produced in three hand polished cavities:

    WARNING:  This product can expose you to chemicals including vinyl chloride which is known to the State of California to cause cancer. For more information go to https://www.P65Warnings.ca.gov


3120 CT
Item #
Item Application
Insulated terminals and splices, color coded red, blue & yellow
Connector/Terminal Type
Insulated terminals
Cable/Crimp Type
Crimps conductor portion of terminal, 3 cavities
Crimp/HEX/Wire Sizes
22-10 AWG
Product Length
9 inches / 22.86 cm
Product Weight
15 ounces / .42 kgs
