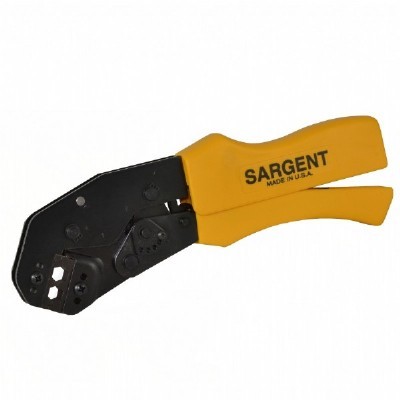

4172CT - CATV Connector Crimp Tool RG59 & RG6


  • Crimps the RG59 ferrule on CATV connectors to a .324 hex and the RG6 to a .360 hex
  • A multi-purpose frame manufactured to exacting specifications to accept interchangeable dies
  • Molded grips and an easy reach frame to minimize user fatigue
  • Reamed bearing holes, centerless ground pivots and heat treated working components
  • Positive ratcheting assembly with emergency release
  • Conservatively rated tool life of 50,000 cycles
  • Crimps that meet or exceed U.L. tensile requirements

Die set configuration:


4172 CT
Item #
Die Only
Item Application
CATV universal ribbed "F" connectors
Cable/Crimp Type
RG6, RG59
Crimp/HEX/Wire Sizes
.360 / .324
Product Length
9.25 inches / 23.5 cm
Product Weight
1 lb 4 oz. / .56 kgs
