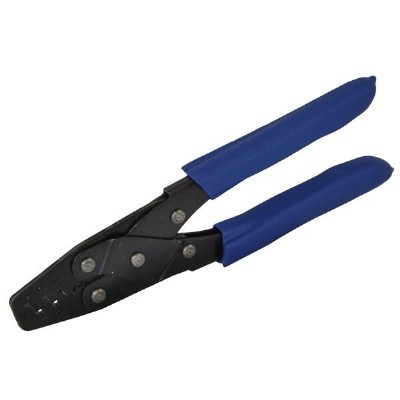

1026CT - Open Barrel Contact 5 Cavity Crimp Tool

Buy Online


  • Crimps a wide variety of open barrel contacts, including D-subminiature in small size wire ranges
  • Crimps conductor and insulation portion of contacts in separate cavities. Tool must be closed twice to complete termination

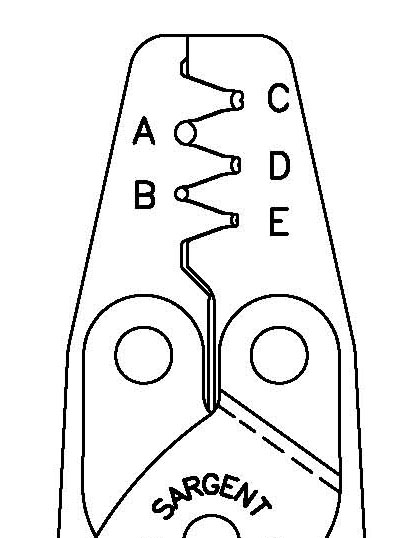

  • "Oval" type insulation crimps are produced in two cavities: A 20-16 AWG and B 30-22 AWG
  • "B" type conductor crimps are produce in three cavities: C 18-16 AWG, D 22-20 AWG and E 30-24 AWG
  • Covers most sealed Weatherpack terminals
  • Compliant with the US Berry Amendment. Contact Oetiker Tool Corp. for Certificate of Compliance
1026 CT
Item #
Item Application
Variety of open barrel contacts, including Weatherpack, D-sub in small size wire ranges
Connector/Terminal Type
Open barrel, D-sub
Cable/Crimp Type
"B" type conductor crimps, "oval" type insulation crimps
Crimp/HEX/Wire Sizes
30-16 AWG
Product Length
8 inches / 20.3 cm
Product Weight
10 oz / .28 kgs
