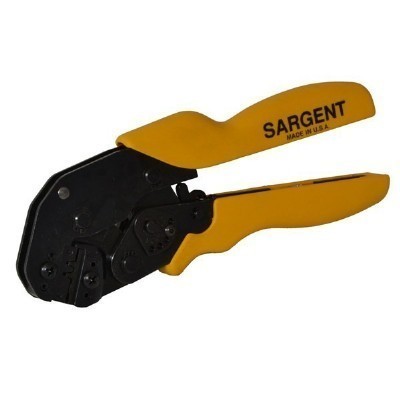

2164CT - Coax Crimp Tool 8281 & RG59


This compact design provides a new level of efficiency and convenience when terminating small to medium size wire or cable. The same level of quality and performance built into the 4100 Series, is also provided in the 2100 Series. The US manufactured, fine blank high carbon steel construction, provides the accuracy and longevity expected from a durable commercial grade crimping tool.

  • Crimps the center pin to a .068 hex, RG59 ferrule to a .255 hex, and the 8281 ferrule to a .324 hex
  • Molded grips and an easy reach frame minimize user fatigue
  • Compact lightweight design
  • Cyclic life conservatively rated for 50,000 cycles
  • Interlocking die sets are easily interchanged with mounting screws on most applications
  • Fine blanked high carbon steel construction provides for longevity and maintained accuracy

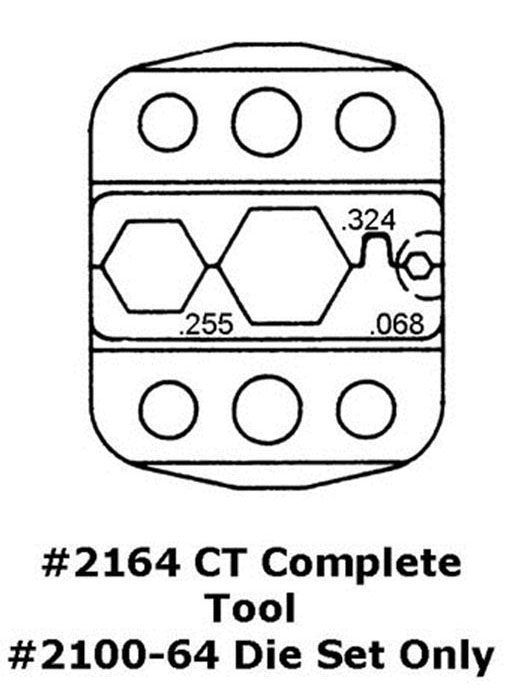

Jaws Configuration


2164 CT
Item #
Die Only
Item Application
BNC, TNC 3 piece
Cable/Crimp Type
RG59, Belden 8281
Crimp/HEX/Wire Sizes
.068 / .255 /.324
Product Length
7.5 inches / 19.05 cm
Product Weight
15 oz. / .42 kgs
