6227CT - Triple Cavity Battery Terminal Clamp & Cable Lug Crimp Tool

Buy Online


  • Precision machined crimping cavities
  • No dies to move or switch
  • 19-inch tool length for maximum leverage and superior mechanical advantage
  • Ergonomic cushioned grips remain comfortable
  • Easy to adjust with 5/32-inch hex key - adjustment instructions are on the handle
  • Designed to exceed tensile strength requirements
  • Diamond shaped crimp for positive electrical  contact and excellent pull resistance
  • Multiple cavity battery terminal clamp and cable lug crimp tools

6227 CT
Item #
Item Application
Standard cast & heavy wall battery lugs & terminals
Connector/Terminal Type
Square shaped crimp
Cable Type

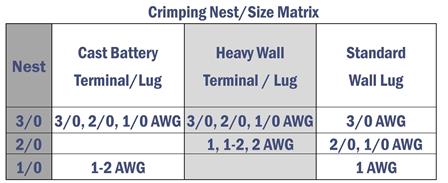

Crimp/Wire Sizes
Cast 3/0, 2/0, 2 & 1 AWG; Heavy Wall 3/0, 2/0, 2 & 1 AWG; Standard Wall 3/0, 2/0, 1/0 & 1AWG
Tool Length
19 inches/48 cm
Tool Weight
5 lbs./2.3 kgs
