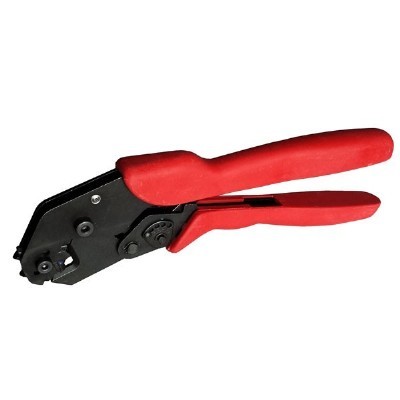

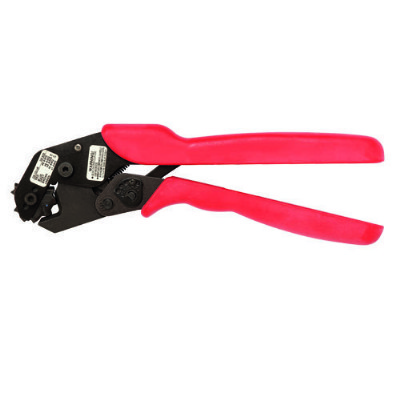

#4295 - Five-Size Copper Power Compression Lug Crimp Tool

Product FeaturesDescriptionInstructions
  • Rotating die is color coded to industry standard (AWG) sizes:  Red-8; Blue-6; Grey-4; Brown-2, Green-1
  • Same as F111 5 in 1 Crimping Tool
  • Frame manufactured to exacting specifications
  • High mechanical advantage with molded cushion grips minimize user fatigue.
  • Easy reach frames that optimize hand grip ratios to maximize user productivity.
  • All bearing holes are reamed, pivot pins are centerless ground and all working components are heat treated.
  • Positive ratcheting assembly with emergency release.
  • Tool life is conservatively rated at 50,000 cycles.
  • Crimps meet or exceed U.L. tensile requirements.
  • Standard tool length is 10 - 1/2" to facilitate two handed crimping.


Item # 4295 CT
Application Copper power compression lugs, color coded RED-8, BLUE-6, GREY-4, BROWN-2, GREEN-1
Connector/Terminal Type Compression lugs & splices
Crimp/Wire Sizes 8, 6, 4, 2, & 1 AWG
Tool Length 10.5 inches
Tool Weight 1 lb. 8 oz.
