3137CT - Butt Splice, Commercial Grade Red (22-16 AWG), Blue (16-14 AWG) & Yellow (12-10 AWG) Crimp Tool

Buy Online


Crimps commercial grade butt splices: D-4326-36; D-4326-37; D-4326-38 (Ref: Raychem AD 1377).

  • Crimps are indentor type and conform to O.E.M. specifications

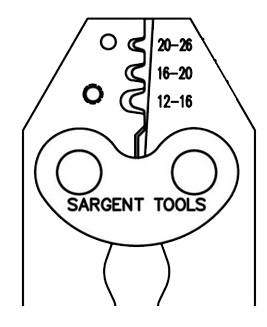

  • Crimps are produced in three cavities:
    • 26-20 AWG (Red)
    • 20-16 AWG (Blue)
    • 16-12 AWG (Yellow)
  • A built-in locator properly orients the butt splice during crimping
  • Crimps commercial grade butt splices: Raychem D-4326-36; D-4326-37; D-4326-38:
  • Meets Mil Spec M22520/37-01, Cage 11851
  • US Patent #3157075

WARNING:  This product can expose you to chemicals including vinyl chloride which is known to the State of California to cause cancer. For more information go to https://www.P65Warnings.ca.gov.

3137 CT 2020
Item #
Same as
Raychem AD 1377
Item Application
Commercial grade butt splices Raychem D-436-36/37/38
Cable/Crimp Type
Indentor type conforming to OEM specifications.
Crimp/HEX/Wire Sizes
26-12 AWG
Product Length
9 inches / 22.86 cm
Product Weight
15 ounces / .42 kgs
