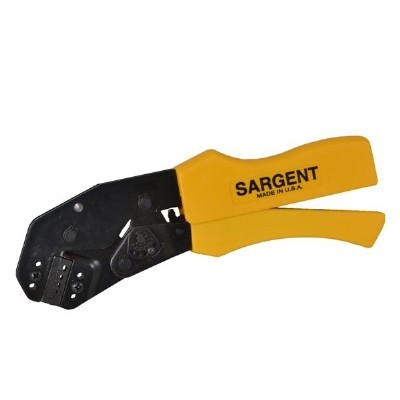

4183CT - Bootlace Crimper


  • Crimps wire tip ferrules with and without plastic insulator collar to metric standards
  • Crimps are produced in five cavities: 0,25-0,5 mm2, 0,75-1,5 mm2, 4,0 mm2, and 6,0 mm2 (28-10 AWG)
  • A multi-purpose frame manufactured to exacting specifications to accept interchangeable dies
  • Molded grips and an easy reach frame to minimize user fatigue
  • Reamed bearing holes, centerless ground pivots and heat treated working components
  • Positive ratcheting assembly with emergency release
  • Conservatively rated tool life of 50,000 cycles
  • Crimps that meet or exceed U.L. tensile requirements

Die set configuration:


Click here for operating and adjustment procedures




4183 CT
Item #
Die Only
Item Application
Wire Tip Ferrules (with & without plastic insulator collar)
Cable/Crimp Type
Crimps are indentor type, 5 cavities
Crimp/HEX/Wire Sizes
0.25-6.0mm² (28-10 AWG)
Product Length
9.25 inches / 23.5 cm
Product Weight
1 lb 4 oz. / .56 kgs
