4296CT - Six-Size Copper Power Compression Lug Crimp Tool

Buy Online

Features:

The Super Ergo frame design reduces hand stress. The progressive pivoting action coupled with an easy reach cushion grip facilitates productivity. Mechanical advantage is optimized to reduce hand pressure while maintaining proper hand grasp ratios. Fine blanked, high carbon steel construction provides the highest level of accuracy and performance available within the industry. These tools are manufactured in the US and are backed by over 100 years of quality craftsmanship.

  • Includes two rotating die sets, color coded to industry standard (AWG) sizes:
    • Die set A:  Red-8; Blue-6; Grey-4 & Brown-2 (Installed)

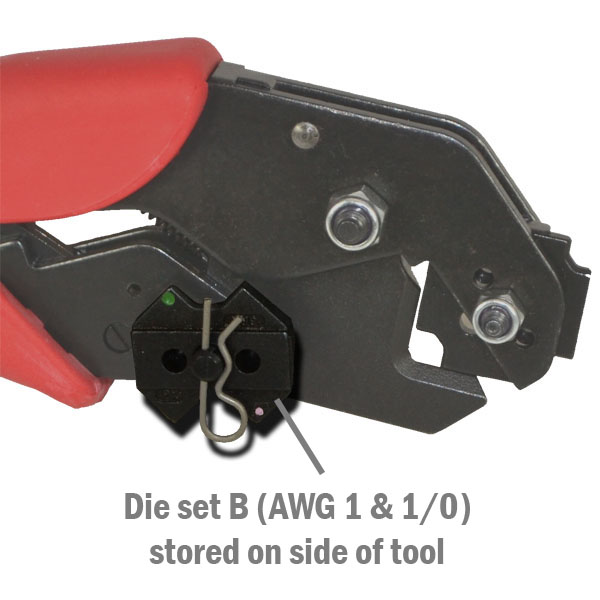

    • Die set B: Green-1 & Pink-1/0 (Attached to pin on side of tool)
  • Pin and cotter pin on side of tool hold die set that is not is use
  • Frame manufactured to exacting specifications
  • High mechanical advantage with molded cushion grips minimize user fatigue
  • Easy reach frames that optimize hand grip ratios to maximize user productivity
  • All bearing holes are reamed, pivot pins are centerless ground and all working components are heat treated
  • Positive ratcheting assembly with emergency release
  • Tool life is conservatively rated at 50,000 cycles
  • Crimps meet or exceed U.L. tensile requirements
  • Standard tool length is 10-1/2 inch to facilitate two handed crimping
4296 CT
Item #
4296CT
Item Application
Copper power compression lugs, color coded RED-8, BLUE-6, GREY-4, BROWN-2, GREEN-1, PINK-1/0
Connector/Terminal Type
Compression lugs & splices
Crimp/Wire Sizes
8, 6, 4, 2, 1, & 1/0 AWG
Tool Length
11 inches
Tool Weight
1 lb. 8 oz.
