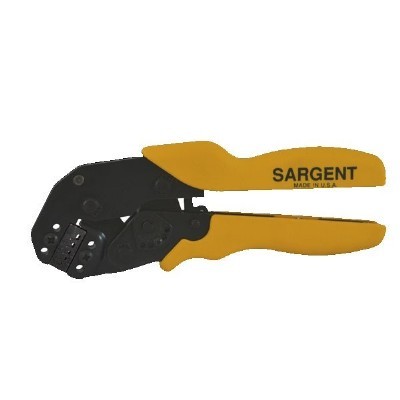

2183MCT - Metric Insulated & Non-Insulated Connector Crimp Tool

Features:

Crimps insulated and non-insulated wire tip ferrules to five metric sizes: 0,25-0,5 mm², 0,75-1,5 mm², 4,0mm² and 6,0mm² (28-10 AWG)
Molded grips and an easy reach frame minimize user fatigue
Compact lightweight design
Cyclic life conservatively rated for 50,000 cycles
Interlocking die sets are easily interchanged with mounting screws on most applications
Fine blanked high carbon steel construction provides for longevity and maintained accuracy

Jaw Configuration

2183 MCT

Item #: 2183MCT
Die Only: 2100-83
Item Application: Bootlace - Crimps insulated and non-insulated wire tip ferrules to five metric sizes
Connector/Terminal Type: Metric Bootlace
Cable/Crimp Type: "B" Style Crimps
Crimp Wire Sizes: 0,25-0,5 mm², 0,75-1,5 mm², 4,0mm² and 6,0mm² (28-10 AWG)
Product Length: 7.5 inches / 19.05 cm
Product Weight: 15 oz. / .42 kgs
