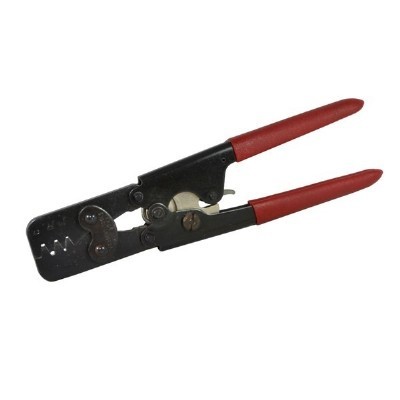

3126CT - Open Barrel Contact Crimp Tool 30-16 AWG


  • Crimps. a wide variety of open barrel. contacts, including D-subminiature in small size wire ranges
  • Crimps conductor and insulation portion of contacts in separate cavities. Tool must be closed twice to complete termination
  • "Oval" type insulation crimps are produced in two cavities: B 20-16 AWG and D 30-22 AWG
  • "B" type conductor crimps are produced in three cavities: A 18-16 AWG, C 22-20 AWG and E 30-24 AWG
  • Includes built-in locator and wire-stop

WARNING:  This product can expose you to chemicals including vinyl chloride which is known to the State of California to cause cancer. For more information go to https://www.P65Warnings.ca.gov.

3126 CT
Item #
Item Application
Variety of open barrel contacts, including D-subminiature in small wire ranges
Connector/Terminal Type
Open barrel
Cable/Crimp Type
Conductor crimp - "oval" type insulation crimps "B" type conductor crimps
Crimp/HEX/Wire Sizes
30-16 AWG
Product Length
9 inches / 22.86 cm
Product Weight
15 ounces / .42 kgs
