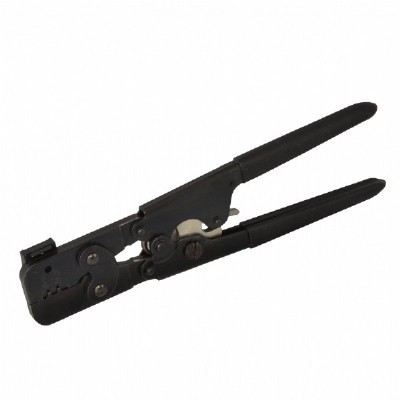

3127CT - D-Subminiature Pin and Socket Crimp Tool


  • Crimps D-subminiature pin and socket terminals (Ref:AMP 90312)
  • The conductor and insulation crimps conform to O.E.M. specifications and are produced on one tool closure

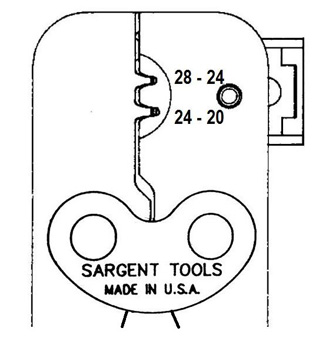

  • Conductor crimps are "B" type, insulated crimps are "Oval" which are produced in two cavities: 28-24 AWG and 24-20 AWG
  • An easy load locator and wire stop are provided to orient the terminals during crimping.

WARNING:  This product can expose you to chemicals including vinyl chloride which is known to the State of California to cause cancer. For more information go to https://www.P65Warnings.ca.gov.


3127 CT hi
Item #
Item Application
D-subminiature pin & socket terminals
Connector/Terminal Type
D-subminiature pin & socket terminals Ref: AMP 90312
Cable/Crimp Type
Conductor crimp -"B" type, Insulation crimp -"Oval" type, 2 cavities
Crimp/HEX/Wire Sizes
28-24 AWG
Product Length
9 inches / 22.86 cm
Product Weight
15 ounces / .42 kgs
