3131CT - Multimate (AMP 90277)

Buy Online


Crimps circular Multimate connector pin and socket terminals. (Ref AMP 90277)

  • The conductor and insulation crimps conform to O.E.M. specifications and are produced in one tool closure

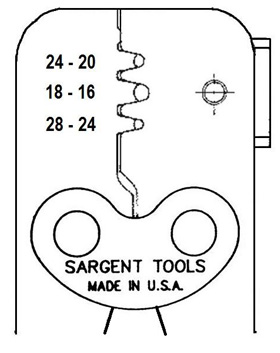

  • Conductor crimps are "B" type, insulation crimps are "Oval" and are produced in three cavities: 28-24 AWG, 24-20 AWG, and 18-16 AWG
  • A locator and wire stop are provided to orient the pin or socket terminals during crimping

WARNING:  This product can expose you to chemicals including vinyl chloride which is known to the State of California to cause cancer. For more information go to http://www.P65Warnings.ca.gov.

3131 CT
Item #
Item Application
Circular Multi-Mate connector pin & socket terminals Ref: AMP 90277
Connector/Terminal Type
Circular Multi-Mate connector pin & socket terminals
Cable/Crimp Type
Conductor crimp -"B" type, Insulation crimp -"Oval" type, 3 cavities
Crimp/HEX/Wire Sizes
28-16 AWG
Strip Type/Dimensions
Ref: AMP 90277
Product Length
9 inches / 22.86 cm
Product Weight
15 ounces / .42 kgs
