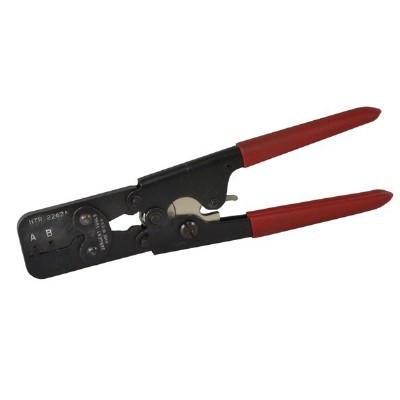

3135CT - .100 Interconnect System Crimp Tool

Buy Online


Crimps Molex .100 Interconnect System crimp terminals. (Ref: Molex 2262A; 11010037)

  • The conductor and insulation crimps conform to O.E.M. specifications and are produced in one tool closure

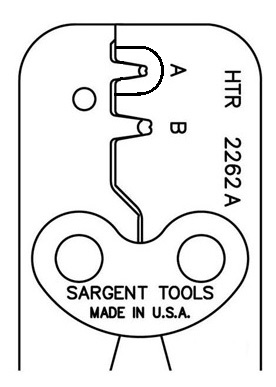

  • Conductor and insulation crimps are "B" type which are produced in two cavities: 30-28 AWG and 26-24 AWG
  • Ratcheted for positive performance
  • For crimping a specific terminal, search by terminal number

WARNING:  This product can expose you to chemicals including vinyl chloride which is known to the State of California to cause cancer. For more information go to http://www.P65Warnings.ca.gov.

3135 CT
Item #
Item Application
.062 Pin & Sockets - Male / Female Terminals - KK crimp terminals (Ref: Molex HTR 2262A; 11010037)
Connector/Terminal Type
KK crimp terminals
Cable/Crimp Type
Conductor & insulation crimp -"B" type, 2 cavities
Crimp/HEX/Wire Sizes
30-24 AWG
Product Length
9 inches / 22.86 cm
Product Weight
15 ounces / .42 kgs
