4125CT - Non-Insulated Crimp Tool 22-10 AWG

Features:

4100 Super Crimp Series Tools are designed for the professional that insists on the best commercial grade full-cycle crimp tool available. The ergonomic progressive pivoting design provides maximum crimping force with reasonable handle pressure. Fine blanked, high carbon steel construction provides a level of accuracy and performance usually reserved for MIL-SPEC tools. The 4100 series is manufactured in the US and is backed by over 100 years of quality craftsmanship.

• Crimps conductor and strain relief portion of non-insulated terminals and splices in one tool closure
• Crimps are produced in three cavities: Red 22-16 AWG, Blue 16-14 AWG and Yellow 12-10 AWG
• A multi-purpose frame manufactured to exacting specifications to accept interchangeable dies
• Molded grips and an easy reach frame to minimize user fatigueReamed bearing holes, centerless ground pivots and heat treated working components
• Positive ratcheting assembly with emergency release
• Conservatively rated tool life of 50,000 cycles
• Crimps that meet or exceed U.L. tensile requirements

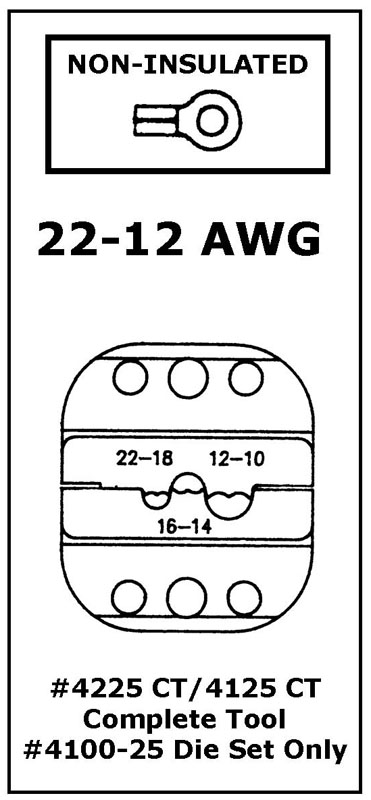

Die set configuration:
