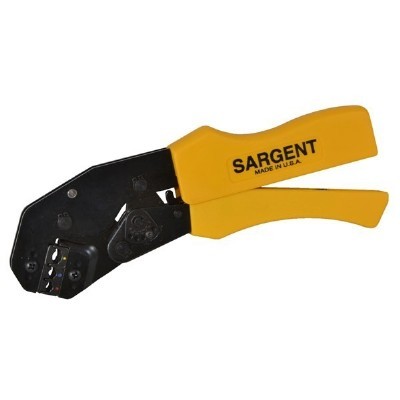

4140CT - Crimp Tool for Insulated Terminals & Splicers


4100 Super Crimp Series Tools are designed for the professional that insists on the best commercial grade full-cycle crimp tool available. The ergonomic progressive pivoting design provides maximum crimping force with reasonable handle pressure. Fine blanked, high carbon steel construction provides a level of accuracy and performance usually reserved for MIL-SPEC tools. The 4100 series is manufactured in the US and is backed by over 100 years of quality craftsmanship.

  • Crimps conductor and strain relief portion of insulated terminals and splices in one tool closure
  • Crimps are produced in three cavities: Red 22-16 AWG, Blue 16-14 AWG and Yellow 12-10 AWG
  • Red and blue cavities produce inspection dimples
  • A multi-purpose frame manufactured to exacting specifications to accept interchangeable dies
  • Molded grips and an easy reach frame to minimize user fatigue
  • Reamed bearing holes, centerless ground pivots and heat treated working components
  • Positive ratcheting assembly with emergency release
  • Conservatively rated tool life of 50,000 cycles
  • Crimps that meet or exceed U.L. tensile requirements

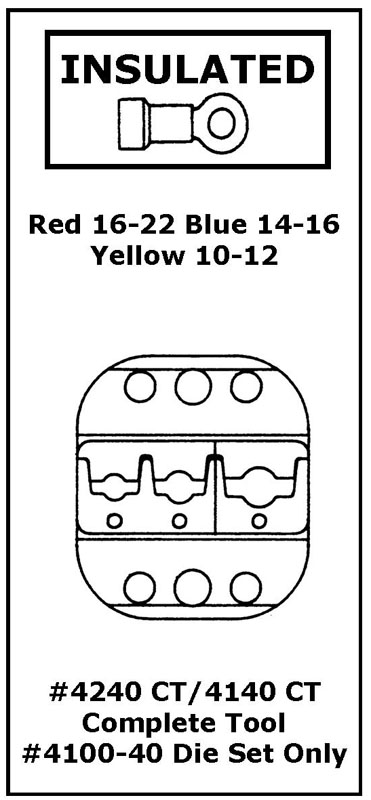

Die set configuration:


4140 CT
Item #
Die Only
Item Application
Insulated terminals & splices
Connector/Terminal Type
Cable/Crimp Type
Conductor & Strain relief
Crimp/HEX/Wire Sizes
Red: 22-16 AWG, Blue: 16-14 AWG, Yellow: 12-10 AWG
Product Length
9.25 inches / 23.5 cm
Product Weight
1 lb 4 oz / .56 kgs
