4141CT - Crimp Tool for Insulated Slide-On Terminals


  • Crimps conductor and strain portions of insulated slide-on terminals in a single action
  • Crimps are produced in two cavities: Red 22-16 AWG and Blue 16-14 AWG
  • A multi-purpose frame manufactured to exacting specifications to accept interchangeable dies
  • Molded grips and an easy reach frame to minimize user fatigue
  • Reamed bearing holes, centerless ground pivots and heat treated working components
  • Positive ratcheting assembly with emergency release
  • Conservatively rated tool life of 50,000 cycles
  • Crimps that meet or exceed U.L. tensile requirements

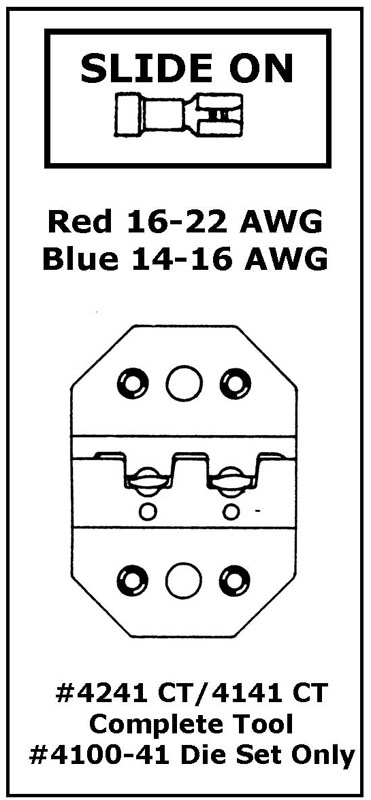

Die set configuration:


4100 Frame
Item #
Die Set Only
Item Application
Insulated Slide-On Terminals
Cable/Crimp Type
Insulator and conductor
Crimp/HEX/Wire Sizes
22 - 14 AWG
Product Length
9.25 inches / 23.5 cm
Product Weight
1 lb 4 oz. / .56 kgs
