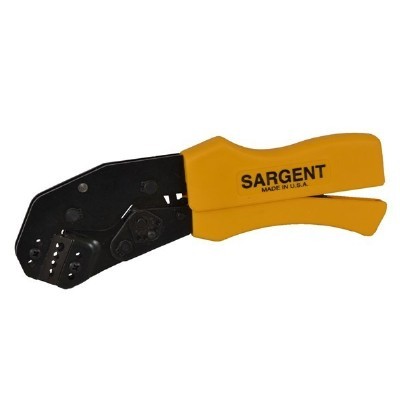

4165CT - Small Coax Crimp Tool


  • Crimps the center pin to a .042 square or .068 hex and the ferrule on small cable to a .128, 151 or 178 hex.
  • A multi-purpose frame manufactured to exacting specifications to accept interchangeable dies
  • Molded grips and an easy reach frame to minimize user fatigue
  • Reamed bearing holes, centerless ground pivots and heat treated working components
  • Positive ratcheting assembly with emergency release
  • Conservatively rated tool life of 50,000 cycles
  • Crimps that meet or exceed U.L. tensile requirements

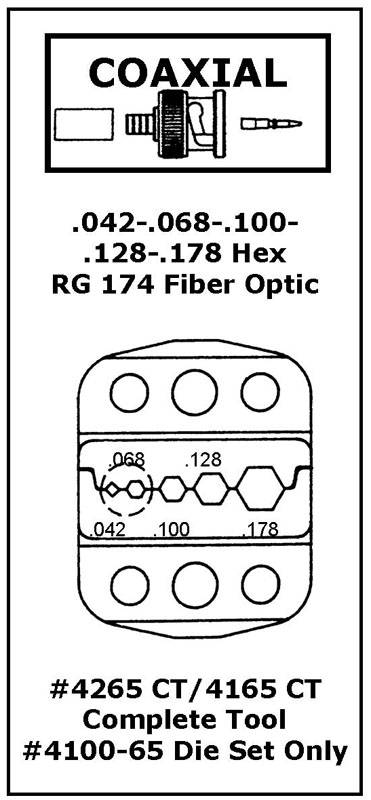

Die Set Configuration:


4165 CT
Item #
Die Only
Item Application
BNC, TNC, Fiber optic
Cable/Crimp Type
Mini coax, RG174
Crimp/HEX/Wire Sizes
.042sq / .068 / .128 / .151 / .178
Product Length
9.25 inches / 23.5 cm
Product Weight
1 lb 4 oz. / .56 kgs
