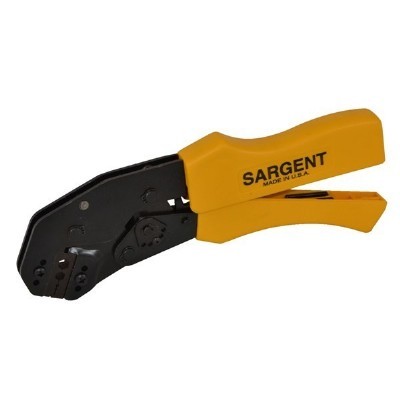

4166CT - Coax Crimp Tool RG58 & RG59


  • Crimps the center pin to a .042 square or a .068 hex, the RG58 ferrule to a .213 hex and the RG59 ferrule to a .255 hex.
  • A multi-purpose frame manufactured to exacting specifications to accept interchangeable dies
  • Molded grips and an easy reach frame to minimize user fatigue
  • Reamed bearing holes, centerless ground pivots and heat treated working components
  • Positive ratcheting assembly with emergency release
  • Conservatively rated tool life of 50,000 cycles
  • Crimps that meet or exceed U.L. tensile requirements

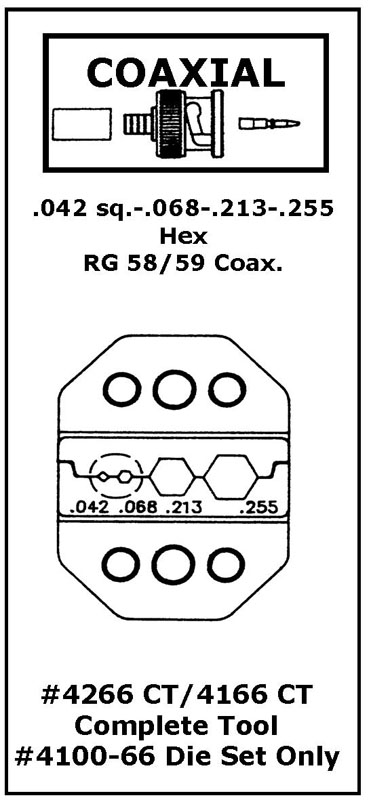

Die set configuration:


Item #
Die Only
Item Application
BNC, TNC 3 piece
Cable/Crimp Type
RG58, RG59, RG62A/U
Crimp/HEX/Wire Sizes
.042sq / .068 / .213 / .255
Product Length
9.25 inches / 23.5 cm
Product Weight
1 lb 4 oz. / .56 kgs
Made In USA
