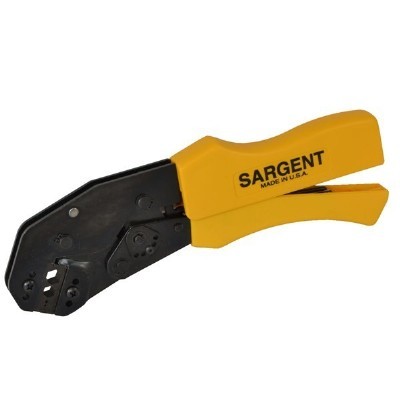

4167CT - RG59 Coaxial Cable Center Pin Crimp Tool


  • Crimps the center pin to a .042 square or .068 hex, the RG59 ferrule to a .255 hex and the 8281 ferrule to a .324 hex
  • A multi-purpose frame manufactured to exacting specifications to accept interchangeable dies
  • Molded grips and an easy reach frame to minimize user fatigue
  • Reamed bearing holes, centerless ground pivots and heat treated working components
  • >Positive ratcheting assembly with emergency release
  • Conservatively rated tool life of 50,000 cycles
  • Crimps that meet or exceed U.L. tensile requirements
  • Interlocking die sets that are easily interchanged with mounting screws for most product applications

Die set configuration:

Super Crimp Series Tools are designed for the professional that insists on the best commercial grade full-cycle crimp tool available. The ergonomic progressive pivoting design provides maximum crimping force with reasonable handle pressure.


4167 CT
Item #
Die Only
Item Application
BNC, TNC 3 Piece
Cable/Crimp Type
RG59, Belden 8281
Crimp/HEX/Wire Sizes
.042sq / .068 / .255 / .324
Product Length
9.25 inches / 23.5 cm
Product Weight
1 lb 4 oz. / .56 kgs
