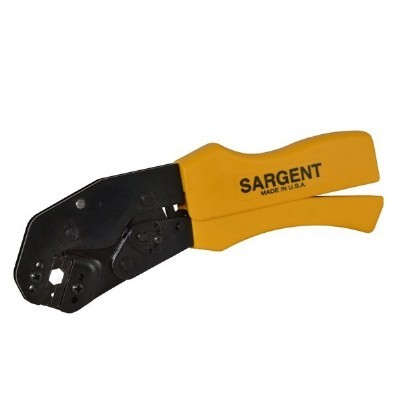

4170CT - Coax Connector Crimp Tool N Type & RG8

Features:

• Crimps center pin to .092 hex and the outer ferrule on N type thicknet RG8 connectors to a .412 hex. A multi-purpose frame manufactured to exacting specifications to accept interchangeable dies
• Molded grips and an easy reach frame to minimize user fatigue
• Reamed bearing holes, centerless ground pivots and heat treated working components
• Positive ratcheting assembly with emergency release
• Conservatively rated tool life of 50,000 cycles
• Crimps that meet or exceed U.L. tensile requirements

Die set configuration:

Crimps center pin to .092 hex and the outer ferrule on N type thicknet RG8 connectors to a .412 hex. A multi-purpose frame manufactured to exacting specifications to accept interchangeable dies
