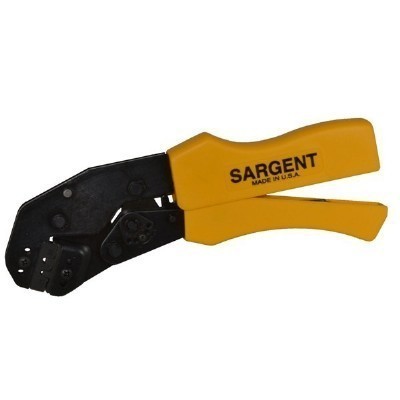

4182CT - AMP Power Pole Crimp Tool


  • Crimps 15 and 30 AMP power poles
  • Crimps are "B" type with indentor
  • Two cavities:
    • "A" 20-16 AWG
    • "B" 16-12 AWG
  • A multi-purpose frame manufactured to exacting specifications to accept interchangeable dies
  • Molded grips and an easy reach frame to minimize user fatigue
  • Reamed bearing holes, centerless ground pivots and heat treated working components
  • Positive ratcheting assembly with emergency release
  • Conservatively rated tool life of 50,000 cycles
  • Crimps that meet or exceed U.L. tensile requirements

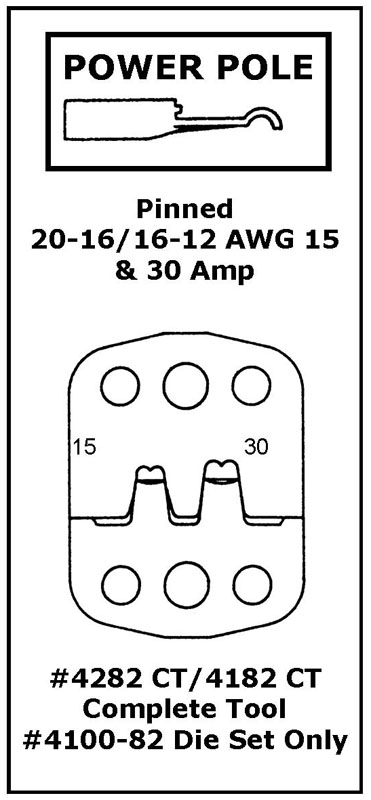

Die Set Configuration


4182 CT
Item #
Die Set Only
Item Application
AMP Power Pole Terminals
Cable/Crimp Type
"B" Type with Indentor
Crimp/HEX/Wire Sizes
20 - 12 AWG
Product Length
9.25 inches / 23.5 cm
Product Weight
1 lb 4 oz. / .56 kgs
