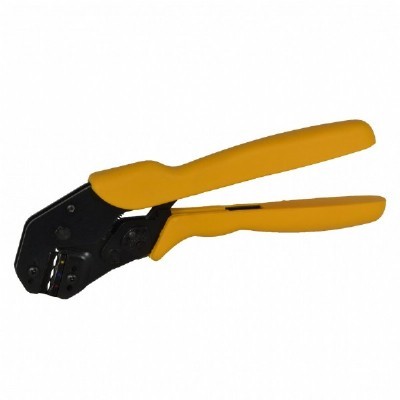

4220CT - Crimp Tool for Insulated Terminals & Splicers

Features:

The Super Ergo tools are designed to reduce hand stress. The progressive pivoting action coupled with easy reach cushion grips facilitates productivity.  Mechanical advantage is optimized to reduce hand pressure while maintaining proper hand grasp ratios. Fine blanked, high carbon steel construction provides the highest level of accuracy and performance available in the industry.

• Crimps conductor and strain relief portion of insulated terminals and splices in one tool closure
• Crimps are produced in three cavities: Red 22-16 AWG, Blue 16-14 AWG and Yellow 12-10 AWG
• A multi-purpose frame manufactured to exacting specifications to accept interchangeable dies
• Molded grips and an easy reach frame to minimize user fatigue
• Reamed bearing holes, centerless ground pivots and heat treated working components
• Positive ratcheting assembly with emergency release
• Conservatively rated tool life of 50,000 cycles
• Crimps that meet or exceed U.L. tensile requirements

Die Set Configuration:
