4235CT - Non-Insulated Terminal & Splicer Crimp Tool 22 - 8 AWG


  • Crimps conductor and strain relief portion of non-insulated terminals and splices in one tool closure
  • Crimps are produced in four cavities: Red 22-16 AWG, Blue 16-14 AWG, Yellow 12-10 AWG and Gray 8 AWG
  • A multi-purpose frame manufactured to exacting specifications to accept interchangeable dies
  • Molded grips and an easy reach frame to minimize user fatigue
  • Reamed bearing holes, centerless ground pivots and heat treated working components
  • Positive ratcheting assembly with emergency release
  • Conservatively rated tool life of 50,000 cycles
  • Crimps meet or exceed U.L. tensile requirements

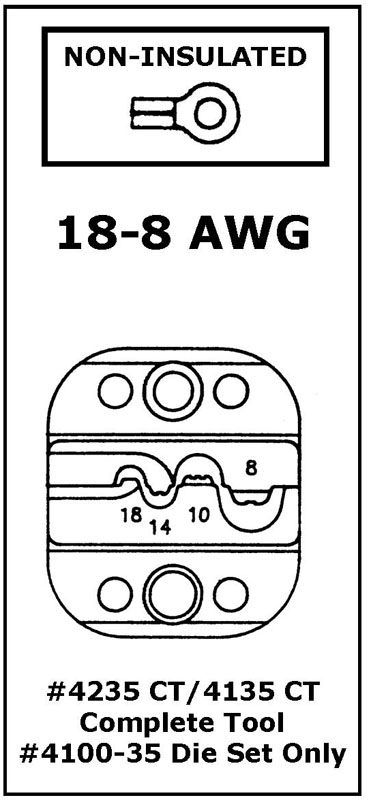

Die set configuration:


4200 Frame
Item #
Die Set Only
Item Application
Non-insulated terminals & splices
Connector/Terminal Type
Cable/Crimp Type
Conductor & strain relief
Crimp/HEX/Wire Sizes
Red: 22-16 AWG, Blue: 16-14 AWG, Yellow: 12-10 AWG; Gray 8 AWG
Product Length
10.5 inches / 26.7 cm
Product Weight
1 lb 8 oz. / .68 kgs
