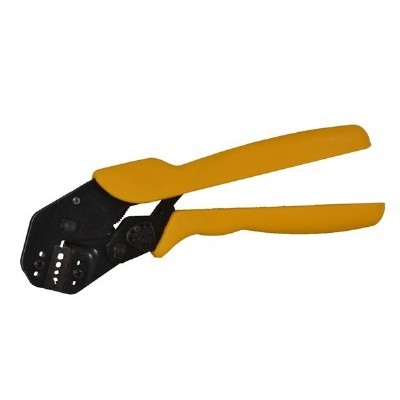

4265CT - Coax Connector Crimp Tool RG174 & Fiber Optic
Features:
- Crimps the center pin to a .042 square or .068 hex and the ferrule on small cable to a .128, 151 or 178 hex.
- A multi-purpose frame manufactured to exacting specifications to accept interchangeable dies
- Molded grips and an easy reach frame to minimize user fatigue
- Reamed bearing holes, centerless ground pivots and heat treated working components
- Positive ratcheting assembly with emergency release
- Conservatively rated tool life of 50,000 cycles
- Crimps that meet or exceed U.L. tensile requirements
Die Set Configuration:
Crimps the center pin to a .042 square or .068 hex and the ferrule on small cable to a .128, 151 or 178 hex.
Instructions:

- Item #
- 4265CT
- Die Only
- 4100-65
- Item Application
- BNC, TNC, Fiber optic+E53
- Connector/Terminal Type
- Coax/Fiber Optic
- Cable/Crimp Type
- Mini coax, RG174
- Crimp/HEX/Wire Sizes
- .042sq / .068 / .128 / .151 / .178
- Product Length
- 10.5 inches / 26.7 cm
- Product Weight
- 1 lb 8 oz. / .68 kgs
