4270CT - RG8 N Type Connector Crimp Tool


  • Crimps center pin to .092 hex and the outer ferrule on N type thicknet RG8 connectors to a .412 hex. A multi-purpose frame manufactured to exacting specifications to accept interchangeable dies
  • Molded grips and an easy reach frame to minimize user fatigue
  • Reamed bearing holes, centerless ground pivots and heat treated working components
  • Positive ratcheting assembly with emergency release
  • Conservatively rated tool life of 50,000 cycles
  • Crimps that meet or exceed U.L. tensile requirements

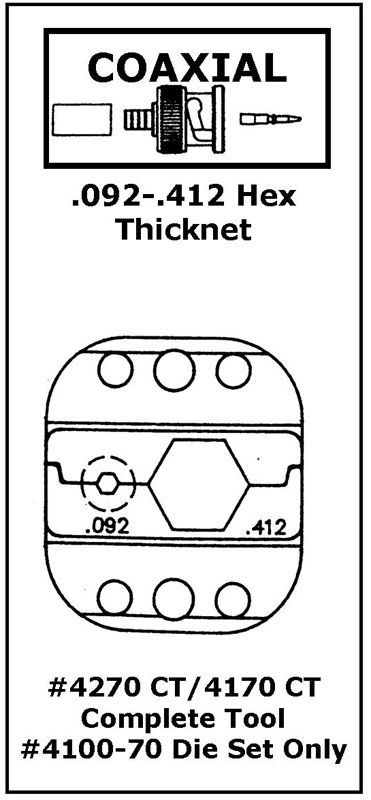

Die set configuration:

The Super Ergo tools are designed to reduce hand stress. The progressive pivoting action coupled with easy reach cushion grips facilitates productivity. Mechanical advantage is optimized to reduce hand pressure while maintaining proper hand grasp ratios. Fine blanked, high carbon steel construction provides the highest level of accuracy and performance available in the industry.


4270 CT
Item #
Die Set Only
Item Application
BNC, TNC 3 piece
Cable/Crimp Type
RG8 N -type
Crimp/HEX/Wire Sizes
.092 / .412
Product Length
9.25 inches / 23.5 cm
Product Weight
1 lb 4 oz. / .56 kgs
