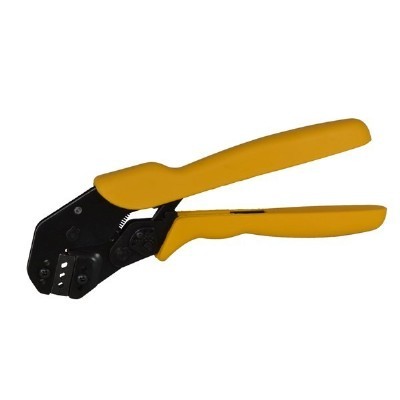

4275CT - Fiber Optic Crimp Tool


  • Crimps outer ferrule on most SMA, SMB or SFB type fiber optic connectors
  • Crimps to .151, .178 or .213 hex
  • A multi-purpose frame manufactured to exacting specifications to accept interchangeable dies
  • Molded grips and an easy reach frame to minimize user fatigue
  • Reamed bearing holes, centerless ground pivots and heat treated working components
  • Positive ratcheting assembly with emergency release
  • Conservatively rated tool life of 50,000 cycles
  • Crimps that meet or exceed U.L. tensile requirements

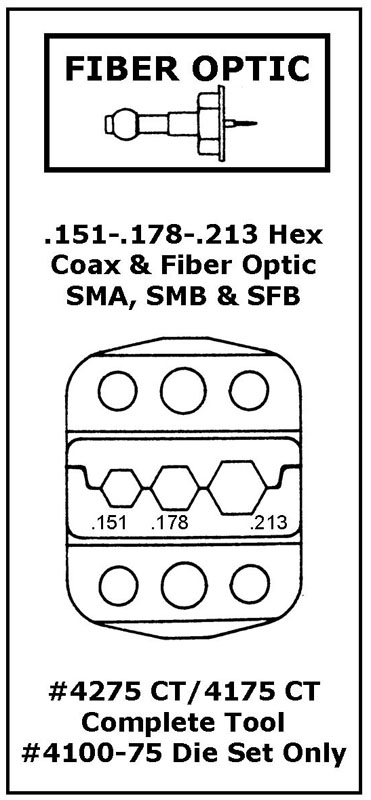

Die set configuration:


4275 CT
Item #
Die Set Only
Item Application
Coax and Fiber Optic Cable Crimping
Cable/Crimp Type
SMA, SMB & SFB Fiber Optic Connectors
Crimp/Hex/Wire Sizes
.151", .178" & .213" Hex
Product Length
10.5 inches / 26.7 cm
Product Weight
1 lb 8 oz. / .68 kgs
