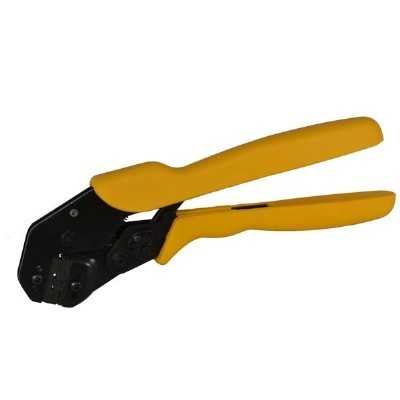

4282CT - AMP Power Pole Crimp Tool


  • Crimps 15 and 30 AMP power poles
  • Crimps are "B" type with indentor
  • Two cavities:
      • "A" 20-16 AWG
      • "B" 16-12 AWG
    • A multi-purpose frame manufactured to exacting specifications to accept interchangeable dies
    • Molded grips and an easy reach frame to minimize user fatigue
    • Reamed bearing holes, centerless ground pivots and heat treated working components
    • Positive ratcheting assembly with emergency release
    • Conservatively rated tool life of 50,000 cycle
    • Crimps that meet or exceed U.L. tensile requirements

Die Set Configuration


4282 CT
Item #
Die Set Only
Item Application
AMP Power Pole Terminals
Cable/Crimp Type
"B" Type with Indentor
Crimp/HEX/Wire Sizes
20 - 12 AWG
Product Length
10.5 inches / 26.7 cm
Product Weight
1 lb 8 oz. / .68 kgs
