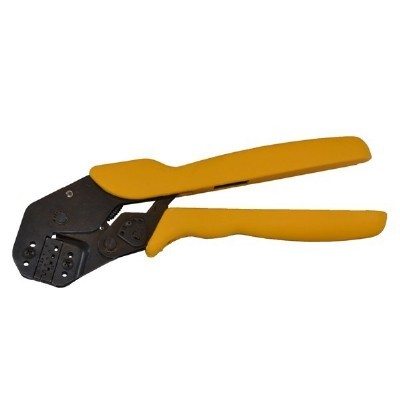

4283MCT - Wire Tip Ferrule Crimp Tool 0,25-6,0 mm2


The Super Ergo tools are designed to reduce hand stress. The progressive pivoting action coupled with easy reach cushion grips facilitates productivity. Mechanical advantage is optimized to reduce hand pressure while maintaining proper hand grasp ratios. Fine blanked, high carbon steel construction provides the highest level of accuracy and performance available in the industry.

  • Crimps wire tip ferrules with and without plastic insulator collar to metric standards
  • Crimps are produced in five cavities: 0,25-0,5 mm2, 0,75-15 mm2,4,0 mm2 and 6,0 mm2 (28-10 AWG)
  • A multi-purpose frame manufactured to exacting specifications to accept interchangeable dies
  • Molded grips and an easy reach frame to minimize user fatigue
  • Reamed bearing holes, centerless ground pivots and heat treated working components
  • Positive ratcheting assembly with emergency release
  • Conservatively rated tool life of 50,000 cycles
  • Crimps that meet or exceed U.L. tensile requirements

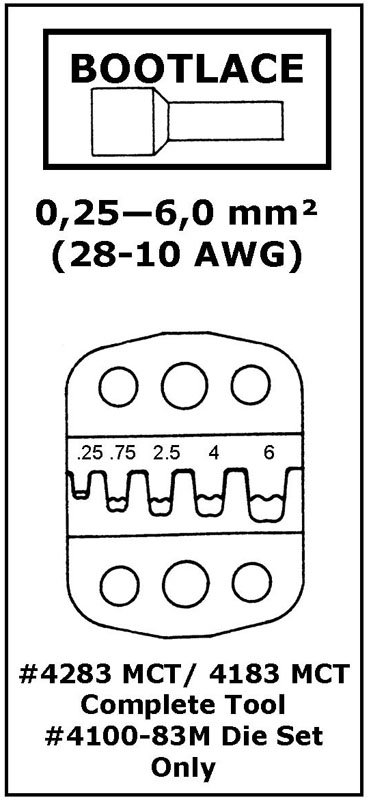

Die Set Configuration:


4283 MCT
Item #
Die Only
Item Application
Wire Tip Ferrules (with & without plastic insulator collar)
Connector/Terminal Type
Wire Tip Ferrules
Cable/Crimp Type
Crimps are indentor type, 5 cavities
Crimp/HEX/Wire Sizes
0.25-6.0mm2 (28-10 AWG)
Product Length
10.5 inches / 26.7 cm
Product Weight
1 lb 8 oz. / .68 kgs
