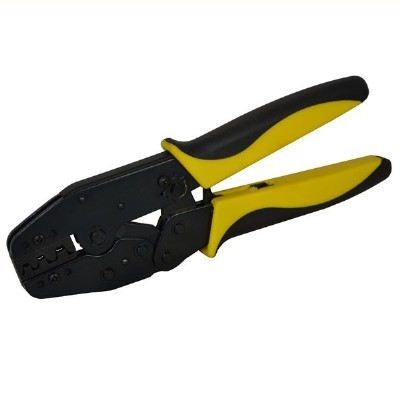

6530CT - Open Barrel B Type Crimps 20-18 AWG, 16-14 AWG and 12-10 AWG.


These Thrift Crimp Tools are designed for the user that insists on a reliable termination, yet cannot justify the cost of our fineblanked 4200, 4100, or 2100 Series interchangeable die tools. These cost efficient tools are precision manufactured to produce crimps to industry standards.

  • Crimps a wide variety of open barrel contacts in medium to large size wires in one tool closure
  • A wide range of "B" type crimps are produced in three cavities: A 20-18 AWG, B 16-14 AWG and C 12-10 AWG
  • Accepts Sargent's full line of 6500 Series interchangeable dies for numerous applications
  • Additional die sets sold separately


6530 CT
Item #
Die Only
Item Application
Variety of open barrel contacts in medium to large wire ranges
Connector/Terminal Type
Open barrel contacts
Crimp/HEX/Wire Sizes
20-10 AWG
Product Length
8 1/2 inches, 21.6 cm
Product Weight
1 lb. 3 oz.
