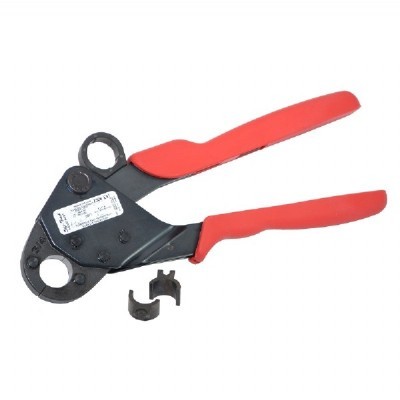

7306ES - 1/2" & 3/4" 2-in-1 Compact PEX Crimping Tool for Copper Crimp Rings

Buy Online

Features:

Unique toggle action crimp tool is an excellent choice whenever space is a challenge. Crimps with one hand, freeing the other hand to hold the pipe, flashlight, etc.

  • One crimp tool, two most used sizes:  1/2 inch and 3/4 inch
  • It's a 3/4 inch compact tool with 1/2 inch inserts
  • Compact size and offset head is ideal in tight areas
  • Innovative holding loop on handle stores 1/2" dies when not in use
  • Ergonomic grips lessen hand strain - you'll be more productive
  • Crimps copper rings to ASTM F-1807 specs

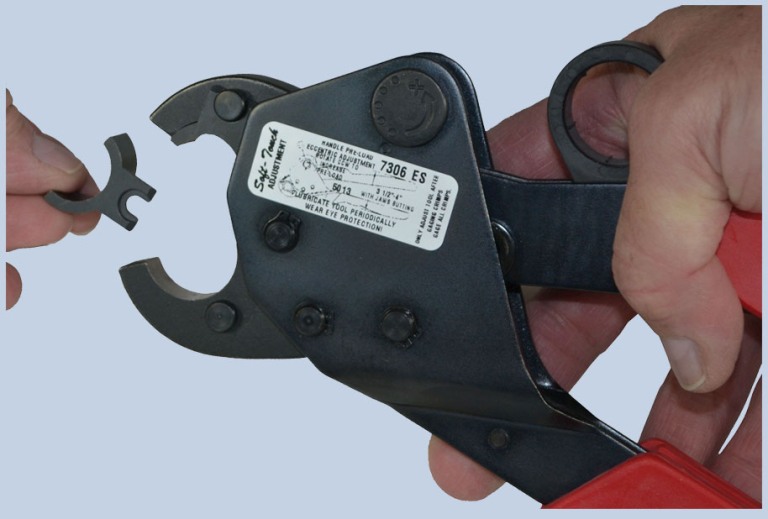

  • Spring loaded pins make changing sizes easy

Instructions:

7306ES
7306ES
#7306 ES - 1/2" & 3/4" 2-in-1 Compact PEX Crimping Tool for Copper Crimp Rings Video
Item #
7306ES
PEX Pipe Size
1/2 inch, 3/4 inch
Sealing System
Copper crimp rings
Recalibratable By User?
Yes. Simple instructions are on the handle.
Available with Display Packaging?
Yes. Add "DP" to end of item number when ordering
Tool Length
12 inches
Tool Weight
2 lbs.
Replacement Die Set (1/2") #
7306 ES K-02
