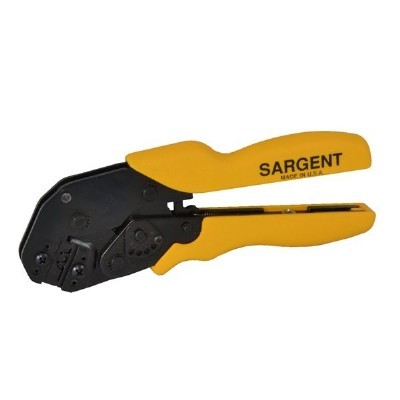

2127CT - Compact D-Subminiature Pin & Socket Crimp Tool
Features:
- Crimps D-subminiature open barrel contacts
- A locator and wire stop are provided to properly orient the contact during crimping
- The conductor and insulation crimps meet O.E.M. specifications and are produced in one tool closure
- Conductor crimps are "B" type, insulation crimps are "oval" type and are produced in two cavities: FRONT 30-26 AWG and REAR 24-20 AWG
- Molded grips and an easy reach frame minimize user fatigue
- Compact lightweight design
- Cyclic life conservatively rated for 50,000 cycles
- Interlocking die sets are easily interchanged with mounting screws on most applications
- Fine blanked high carbon steel construction provides for longevity and maintained accuracy
Instructions:

- Item #
- 2127CT
- Die Only
- 2100-27
- Item Application
- D-subminiature pins & sockets
- Cable/Crimp Type
- Conductor crimp -"B" type, Insulation crimp -"Oval" type, 2 cavities
- Crimp/HEX/Wire Sizes
- 30-20 AWG
- Product Length
- 7.5 inches / 19.05 cm
- Product Weight
- 15 oz. / .42 kgs
